Burette METROHM 876 with 50 ml Unit
The Metrohm Dosimats 876 is used as an automatic dosing device connected to the DABS.
The dosing unit can be operated by the mains power supply from 100V AC to 240V AC Voltage with 50Hz or 60Hz frequency and has a power consumption of 45 W.
It comes with an appropriate connecting cables.
Default delivery content
- Exchange Unit, buret volume 50 mL [DABS-1115]
- Adapter Tube to M806 [DABS-1116]
- Cable Burette METROHM 876 [DABS-1404]
- Power cable
Informative note
This burette model can be operated by HITEC Absorption models:

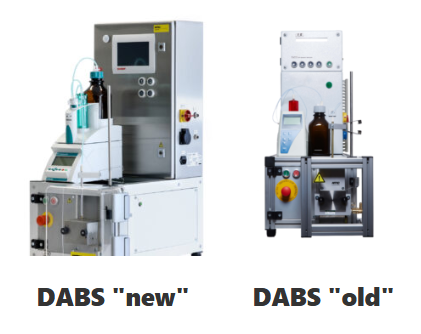

- DABS-BASU (version 2000 to 2020) [DABS “old”]
- DABS-BU01 (version 2020 to the present day) [DABS “new”]
Please indicate in the options below which DABS model the burette will be used with so that the appropriate control cable can be included, or send a quote with the costs of the additional cable.
Mounting
Install the titration unit on the glass of the DABS!
Connect the power cable on the device socket and the power outlet on the DABS.
Connect the control cable on the device remote control socket (D-Sub, 9-pin) and on the burette socket on the DABS.
Technical data
- Material of the housing: Poly (butylene terephthalate) (PBT)
- Material of display cover: Glass
Additional information
| Weight | 7,50 kg |
|---|---|
| Dimensions | 40,0 × 39,0 × 31,0 cm |
